Overview of work:

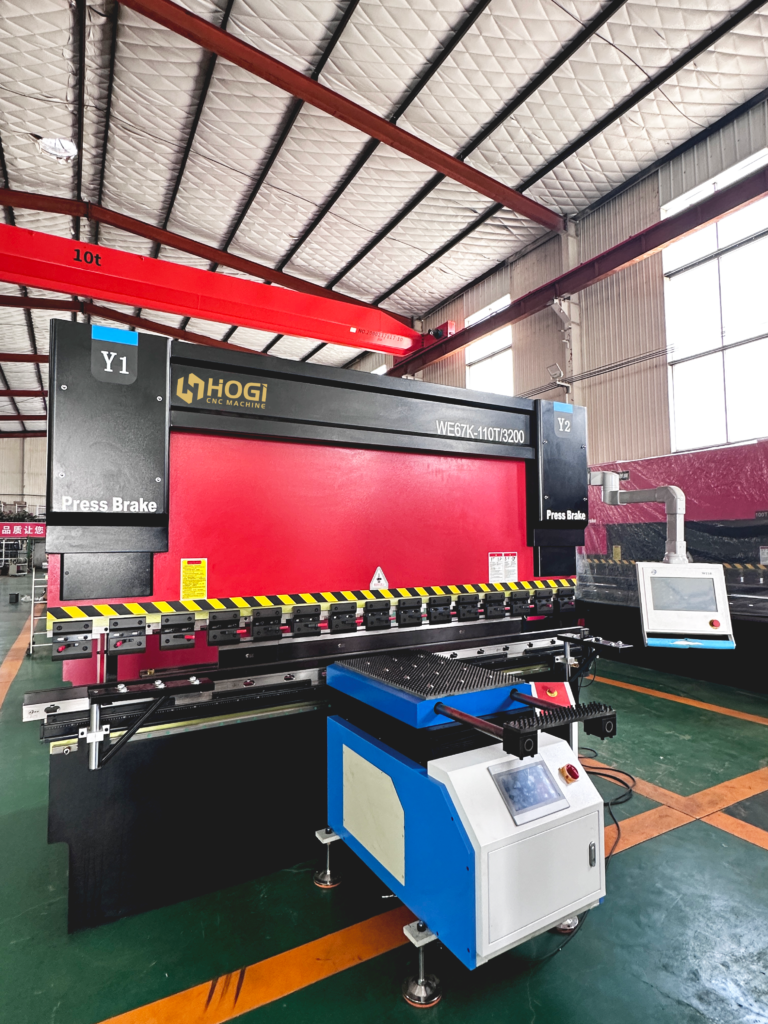

When the bending machine is bending workpieces, it often processes workpieces with longer lengths and higher weights. When the bending machine is bending, the workpiece will be closed with the mould, and the sheet on both sides of the bending line will be turned upwards. In order to avoid too long or too heavy sheet due to bending and gravity affect the bending accuracy of the workpiece, we recommend that the bending machine is equipped with a portable pallet device.The bending machine with the pallet device, using a novel design, servo motor drive, wider table and greater load force, according to the trajectory of the workpiece in the bending pallet can always follow the movement of the workpiece sheet movement, in order to protect the accuracy of the workpiece bending at the same time, greatly eliminating the difficulty of manpower to assist the pallet.The trajectory and speed of turning and the reversal and speed of plate bending can be accurately matched through the co-ordination of linear and rotary movements of the pallet, and this device is a fully automatic numerical control of the independent movement axis.
Compositional structure:
The pallet is usually connected to the bending machine, and it includes a bracket, a pallet mechanism, a guiding mechanism, a driving mechanism and a transmission mechanism, which are mainly connected to the bending machine through the bracket part, and the rest of the guiding mechanism, the driving mechanism and the transmission mechanism are all connected to the bracket, and then the pallet mechanism is connected to the guiding mechanism, and finally the driving mechanism drives the said pallet mechanism along the movement of the said guiding mechanism through the transmission mechanism. The overall following pallet has the characteristics of stable structure, good use and long service life.
Attributes of the follow-on palletising trolley:
1.High compatibility:
Servo bending follower is a semi-automatic tool to assist the bending workers in the bending process to do up and over action, servo bending follower is different from the market follower, can be matched with any CNC bending machine.
2.Expandability:
It can be personalised according to the customer’s needs, customised to meet the size and dimensions required by the customer.
3.High stability:
The servo bending follower adopts single-axis mechanical linkage, which simplifies the control procedure on the one hand and improves the stability of the machine on the other. At the same time, the simple operation and anti-dulling settings allow the operator to quickly get started.
Follow-along pallet trolley Features:
1.High-precision: the follower bending car adopts advanced CNC technology with high-precision bending accuracy and processing capacity, which can meet various high-precision bending needs.
2.High Efficiency: The follow bending car adopts high power motor and fast response transmission system, which can achieve fast bending and high productivity.
3.High adaptability: The follow bending car can adapt to a variety of different materials, thickness and specifications of the plate bending, but also to adapt to a variety of different bending methods and process requirements.
4.Intelligent: The follower bending car adopts advanced CNC system with intelligent control and operation functions, which can realise automatic production and remote monitoring.
5.Environmental protection and energy saving: Follow the bending car adopts advanced energy-saving technology and environmentally friendly materials, which can effectively reduce energy consumption and reduce environmental pollution.
Advantages of bending with a trailing trolley:
1.Saving labour: The bending follower pallet trolley is designed to reduce manual operation, save a lot of labour cost and improve production efficiency through automated and semi-automated processing.
2.Improve the efficiency of machine tool processing: through the use of bending machine with the bending follower trolley can significantly improve the processing efficiency of the machine tool, especially in mass production, can be quickly and flexibly complete the processing task, has a good economic efficiency.
3.Complete synchronisation between the follower and the plate bending action: the position and speed of the bending machine’s mould movement are sensed by displacement sensors, and signals are sent in real time to the control system of the follower to achieve complete synchronisation with the bending machine, ensuring the accuracy and efficiency of the process.
4.Suitable for matching with various brands and models of bending machines: bending with the pallet trolley can be adapted to all brands and models of bending machines, whether it is upward or downward action bending machine, can achieve good compatibility, without the need to modify the bending machine.
5.Independent control system: Adoption of independent PLC control system avoids the risk of malfunction that may be caused by taking signals from the electric box of the bending machine, and also avoids the safety accidents that may occur due to the interference of the bending machine signals by the accompanying vehicle.
6.Can be moved at any time to match the use of bending machines: the independent structure and movable design of the pallet trolley enables it to adjust its position at any time according to the production needs and match the use of different bending machines, which improves the flexibility and adaptability of production.
